Description
xThe Spektrum™ S100 Smart USB-C Charger provides fast, easy charging for all modelers, especially using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3® or IC5® output ports for adapter-free convenience, and more.
- Capable of delivering up to 100W of charging power with compatible power supply and USB-C Cable
- Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
- Can also be used to charge many standard hobby 1S-4S LiPo, LiIon, LiHV, LiFe, and 1C - 12C Smart NiMH batteries. Note: The S100 will not charge non-Smart NiMH brand batteries.
- Accepts firmware updates via USB-C port
- Color LED screen and three button interface makes charging and checking on a battery's status simple
In The Box
- (1) S100 1x100W USB-C Smart Charger
- (1) 60W USB-C Cable to USB-C Cable
- (1) Product Instruction Manual
Needed to Complete
- (1) 10W minimum USB-C power supply adapter
- *A higher wattage power supply will increase the output power of the S100 charger (up to 100W).
Introduction
The S100 Smart USB-C Charger — from the new generation of Spektrum™ Smart electronics — brings today's most advanced and user-friendly charging technology to RC pilots and drivers of all skill levels.
Features
- Advanced, user-friendly Smart charging technology that fits into any hobby budget
- Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver
- Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable
- Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features)
- Smart software tracks and stores numerous smart battery data
- Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
- Charges up to 4S LiPo/LiFe/LiHV batteries
- Includes an efficient, low-noise cooling fan
- Sleek, sturdy case fits well on a workbench and in pit or field bags
- IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors
Overview
With its up to 100W power, new user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S100 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery with the S100 charger. Use it together with Smart batteries, and you'll be amazed by its incredible functionality and performance.
The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected.
Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required.
Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. All you need is a common USB-C power adapter, and you're ready to go.
Video Overview
SELECT IC3® OR IC5® CHARGING OUTPUT
The S100 Smart USB-C Charger includes IC3® and IC5® output ports for charging your standard Smart batteries without adapters. Use the slider to select either the IC3® or IC5® port and then charge your battery with up to 100W power. You can charge AND balance Smart batteries with one simple IC3® or IC5® connection — no separate balance lead is required.

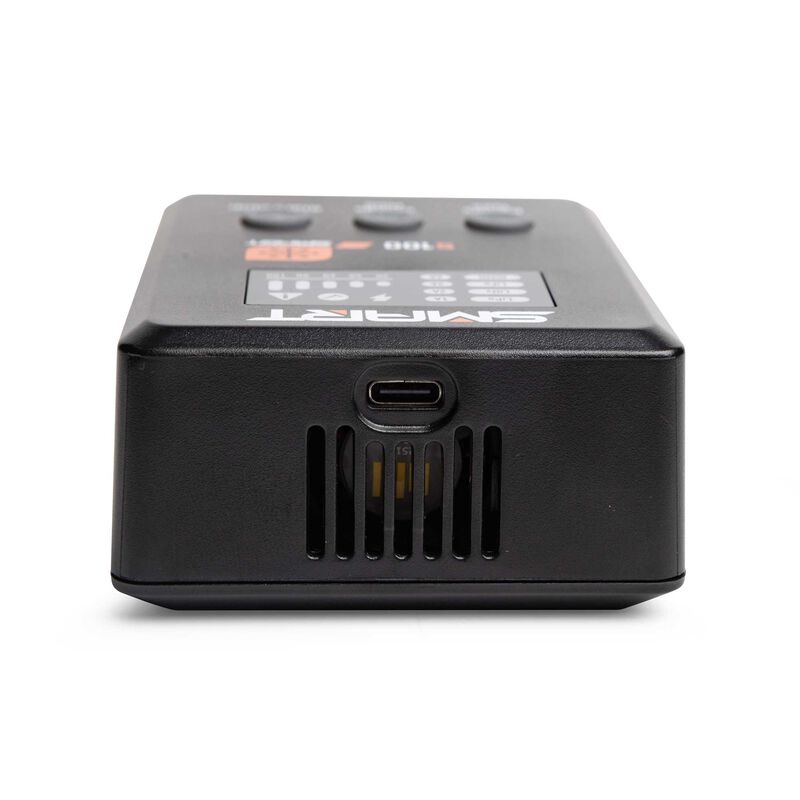

USB-C INPUT POWER INDICATOR
The S100 Smart Charger can be powered by any conventional USB-C cable and USB power supply. The S100 Smart Charger uses USB-C Power Delivery technology to get the most power out of your USB-C Power Supply. During initial power up, the S100 battery level indicator bars will illuminate, indicating the amount of power available from your USB-C power supply. The more wattage from your USB-C, the more powerful your S100 Smart Charger. (USB-C Power Supply not included)
COMPACT CASE DESIGN
The charger's sleek case fits perfectly on your workbench and in your pit or field bag. Its power cord is detachable for easy transport. Rubber bottom grips help the charger stay in place as you connect, charge, and disconnect your RC batteries. Update the charger's firmware through the same USB-C power port on the back of the S100 charger.
| Display | LED |
| Input Voltage | DC 5.0 - 20.0V, USB-C |
| Part Type | Electronics |
| Product Height | 1.42" (36 mm) |
| Battery Type | LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell) |
| PC Connectivity | Yes |
| Programmable | Yes |
| Battery Temperature Monitoring | Yes |
| Integrated Balancing | Yes - Internal Balancer & External Adapter |
| Battery Balance Connector | JST-XH |
| Selectable Charge Rate | Yes |
| Technology | Smart |
| Low Input Voltage Protection | Yes |
| Application | RC Model Battery Charger |
| Product Width | 2.83" (72 mm) |
| Peak Detection | Yes |
| Software Updates | Yes |
| Short Circuit Protection | Yes |
| Over Current Protection | Yes |
| Connector Type | IC3, IC5 |
| Maximum Charge Rate | 1A / 2A / 3A / 6A User Selectable |
| Product Length | 3.86" (98 mm) |
| Thermal Protection | Yes |
