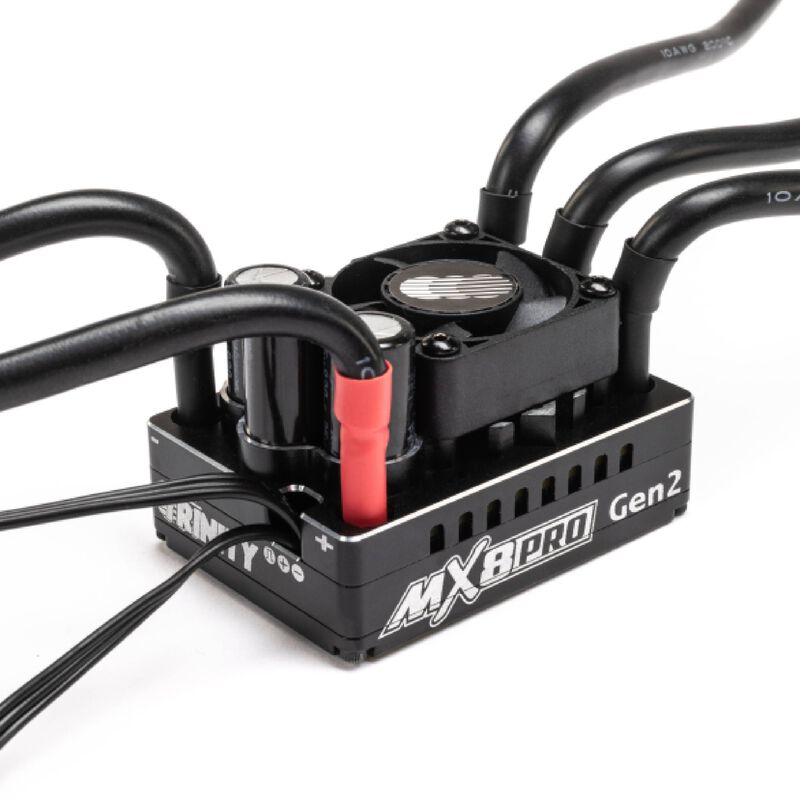

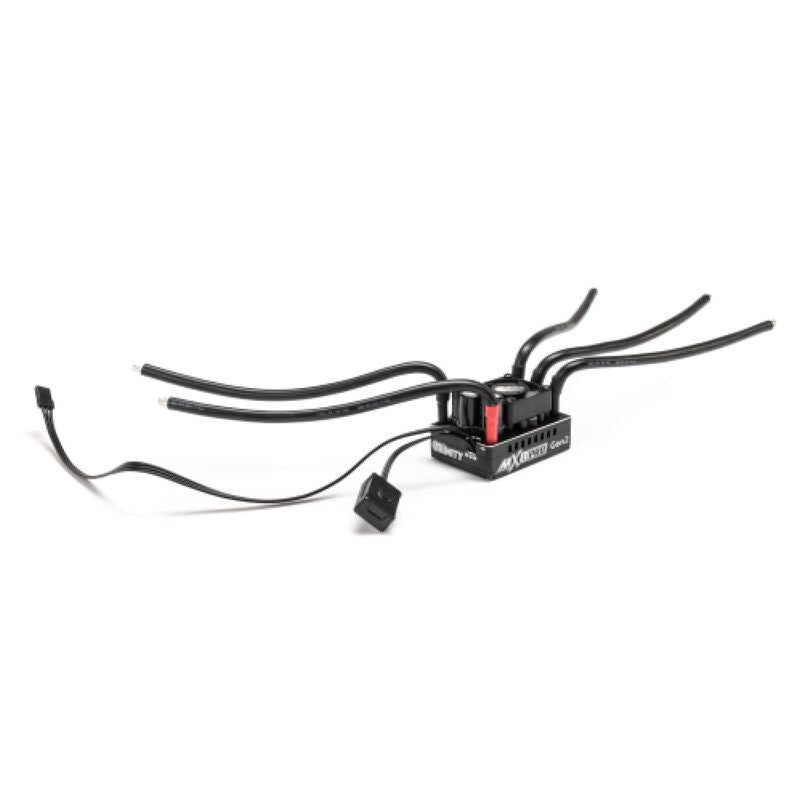

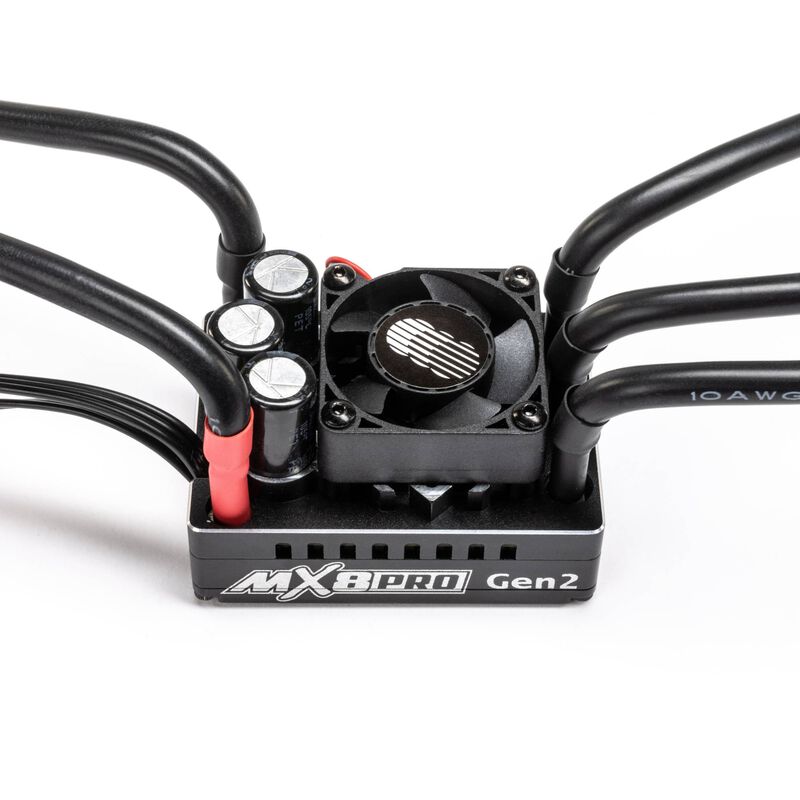

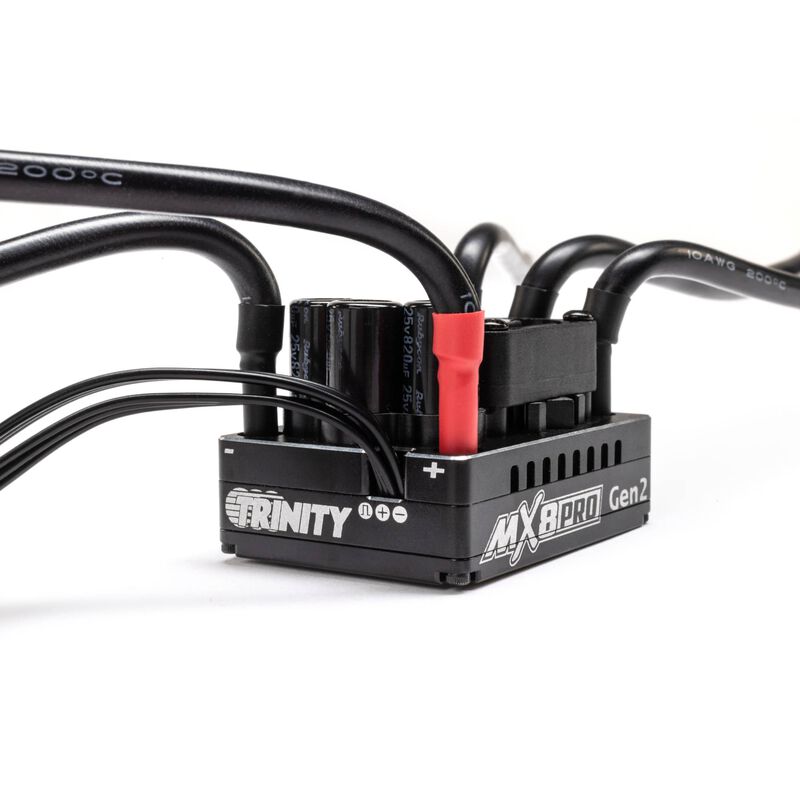

Trinity MX8 Gen 2 220A Sensored ESC Overview

The Trinity MX8 Gen 2 220A Sensored ESC has been designed for the most competitive 1/8 scale off-road racers. The MX8 offers an industry leading 220-amp constant power rate and an incredible 1000-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This second generation of ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each MX8 comes with 10-gauge wire, fan, and built-in wireless module. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX8 Gen 2 ESC can be programmed by connecting to the Trinity Programming App to take your driving to the next level, right from your phone!

Features

  • 220A Current Rating
  • 1000A Burst Current Rating
  • Adjustable 6.0v/7.4v BEC
  • Low voltage cut-off, over-heat, and throttle signal loss protection
  • Proprietary proportional boost and turbo functionality
  • Enhanced throttle response, excellent acceleration, linearity, and drivability
  • Data logging for real-time maximum ESC temperature, motor RPM, Voltage and more
  • 32-bit microprocessor for more powerful processing capability and more accurate motor output
  • Includes 10-gauge wire
  • Lightweight heat sink design, with highly efficient heat dissipation system and 30mm fan
  • Built-in power button
  • Built-in wireless module for connecting to the Trinity Programing App

Please Note:

  • 2S-4S Use Only!
  • Not Recommended for Drag Applications
  • Warranty is void if used in Drag Application
  • Warranty is void if original motor wires are changed or RX wire is altered in any way
Product Length 2.16" (55 mm)
Auto Cutoff Yes
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 140g
Water-Resistant No
Reverse Yes
Wire Gauge 10 AWG
BEC Yes
BEC Voltage 6.0v / 7.4v
Input Voltage 2-4S LiPo / 12S NiMH
Product Height 1.33" (34 mm)
Sensored Yes
Adjustable Timing Yes
Programmable Yes
Product Width 1.57" (40 mm)
BEC Type Adjustable
Maximum Burst Current 1000A
Maximum Continuous Current 220A
Motor Type Brushless
