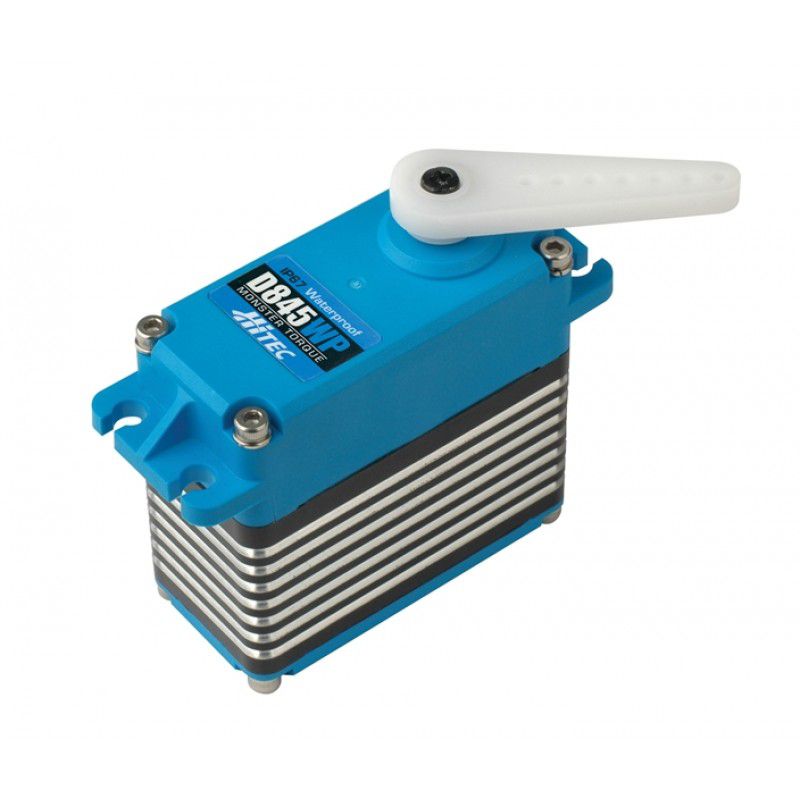

The steel D-845WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
D845WP Servo SpecificationsPerformance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V ~ 7.4V |
Speed (Second @ 60°) | 0.26 ~ 0.21 ~ 0.17 |
Maximum Torque Range oz. / in. | 454 ~ 566 ~ 698 |
Maximum Torque Range kg. / cm. | 32.5 ~ 40.5 ~ 50.0 |
Current Draw at Idle | 30 mA |
No Load Operating Current Draw | 1,600 mA |
Stall Current Draw | 10,000 mA |
Dead Band Width | 2 µs |
Physical Specifications | |
Dimensions (Inches) | 2.59 x 1.26 x 2.44 |
Dimensions (Metric) | 66.0 x 32.0 x 62.0 |
Weight (Ounces) | 8.0 |
Weight (Gram) | 227.0 |
Circuit Type | 32bit Programable Digital |
Motor Type | 5 Poles Cored Metal Brush |
Gear Material | Steel |
Bearing Type | Dual Ball Bearing |
Output Shaft (type / Ømm) | Mega 15 |
Case Material | Plastic / Aluminum |
Dust / Water Resistance | IP 67 |
Connector Gauge (AWG) / Strand Count | 20 / 80 |
