HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

Product Description With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast...
Vendor: HITEC
SKU: HS-5245MG
Availability: Out Of Stock
Product Type: Radio Control
$116.98
$116.98
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $116.98
HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

HITEC

HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

$116.98
HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

HITEC

HS-5245MG Digital Mighty Mini Servo, 32g, 4.8V 4.4kg/015, 6.0V 5.5kg/0.12,

$116.98
Shipping: Hamilton Warehouse
Description
Description
x
Product Description

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features

  • High Speed and High Torque in a Mini Package
  • Durable Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • Fast, High Torque

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

HS-5245MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.15 ~ 0.12
Maximum Torque Range oz. / in. 61 ~ 76
Maximum Torque Range kg. / cm. 4.4 ~ 5.5
Current Draw at Idle 3 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 1,200 mA
Dead Band Width 4 µs
Physical Specifications

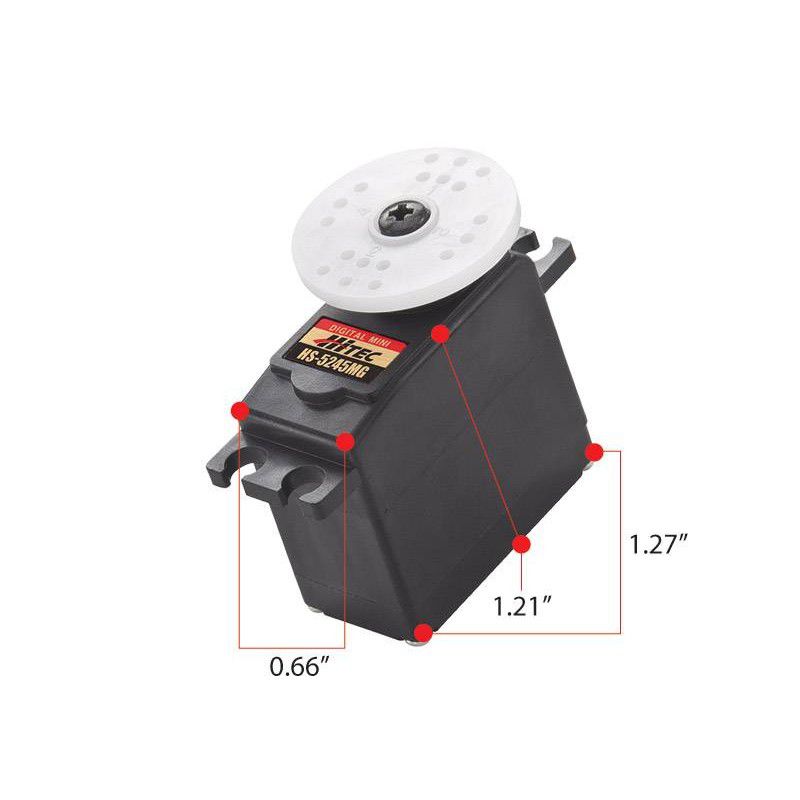

Dimensions (Inches) 1.27 x 0.66 x 1.21
Dimensions (Metric) 32.4 x 16.8 x 30.8
Weight (Ounces) 1.12
Weight (Gram) 32.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
