HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

Product Description Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears. Specifications Motor Type:...
Vendor: HITEC
SKU: HS-45HB
Availability: 5 In Stock
Product Type: Radio Control
$56.26
$56.26
Please hurry! Only 5 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $56.26
HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

HITEC

HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

$56.26
HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

HITEC

HS-45HB Premium Feather Servo, 4.8V 1.0kg/cm 0.14 sec, 8g, 23.6x9.8x22.4 by

$56.26
Shipping: Hamilton Warehouse
Description
Description
x
Product Description

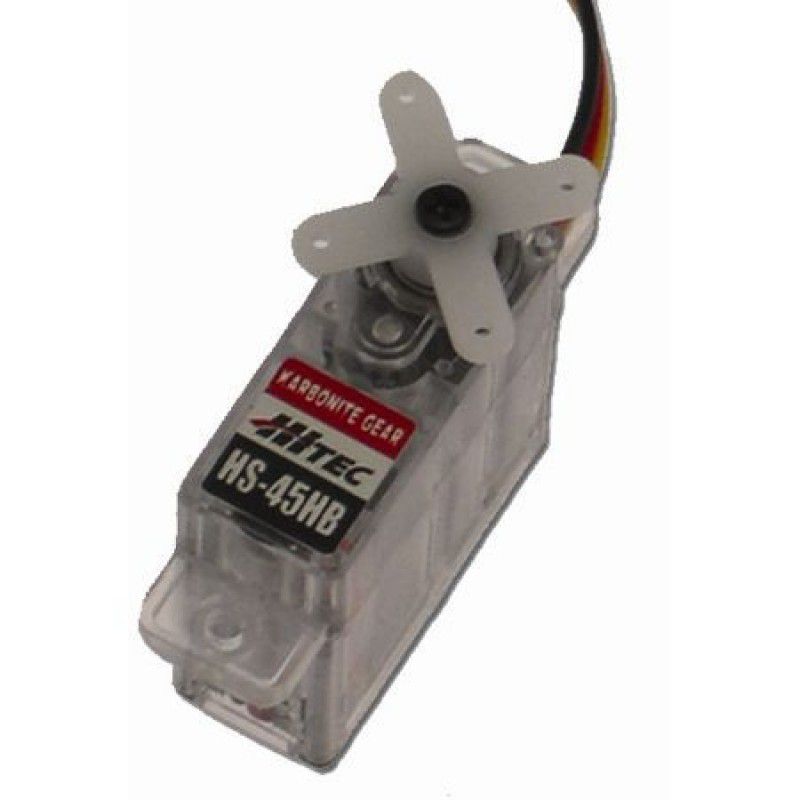

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.

Specifications

Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.14 / 0.12 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 14 / 17
Torque kg./cm. (4.8V/6.0V): 1.0 / 1.2
Size in Inches: 0.92 x 0.38 x 0.88
Size in Millimeters: 23.37 x 9.65 x 22.35
Weight ounces: 0.28
Weight grams: 7.94

Advanced Servo Specifications

Control System: +Pulse Width Control 1500usec Neutral
Operating Voltage Range: 4.8V - 6V
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Idle Current: 8mA
No Load Running Current (4.8V/6.0V): 100mA/60°
Stall Current (4.8V/6.0V): 440mA
Dead Band Width: 5usec
Potentiometer Type: 2 Slider/Direct Drive
Connector Wire Length: 250mm (9.84 in)
Connector Wire Gauge: 28AWG
Shipping
Shipping
x

Shipping

Please note that all delivery targets are estimates only! We cannot guarantee that you'll receive your order within the specified timeframes.

Returns
Returns
x

Returns Policy

If you change your mind about an item that you've purchased from us or you've ordered the wrong item, you may return the item for an exchange or refund.

Goods returned must be in its original unused condition with original packaging and all the included accessories. We do not accept any crash damaged parts, items that have been modified or used for return or exchange.

You must return the item within 7 days of your purchase. Freight costs for returning the item must be shouldered by the customer.
