HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

Product Description The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands...
Vendor: HITEC
SKU: HS-322HD
Availability: 7 In Stock
Product Type: Radio Control
$57.22
$57.22
Please hurry! Only 7 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $57.22
HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

HITEC

HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

$57.22
HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

HITEC

HS-322HD Standard Heavy Duty 4.8V 3kg/0.19sec, 6.0V 3.7kg/0.15, 40x20x36.5mm,

$57.22
Shipping: Hamilton Warehouse
Description
Description
x
Product Description

The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite™ gears and our custom IC make the HS-322HD a great choice for an economical sport servo.

  • Applications: Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.
  • Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications, even if under 12lbs.
  • Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

Features

  • Economical, Heavy Duty, Sport Servo
  • Reliable Three-Pole Ferrite Motor
  • Tough Karbonite Gears
  • Nylon Bushing-Supported Output Shaft

Specifications

Motor Type: 3 Pole
Bearing Type: Nylon
Speed (4.8V/6.0V): 0.19 / 0.15 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 42 / 51
Torque kg./cm. (4.8V/6.0V): 3.0 / 3.7

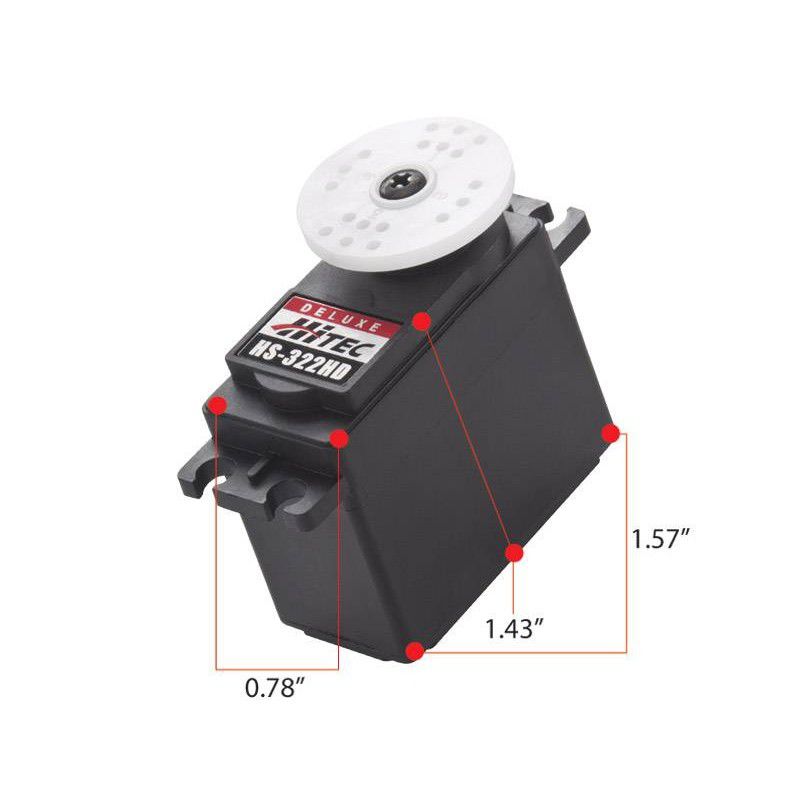

Size in Inches: 1.57 x 0.78 x 1.43
Size in Millimeters: 39.88 x 19.81 x 36.32
Weight ounces: 1.51
Weight grams: 42.81
