FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

Product Details The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to...
Vendor: Spektrum
SKU: SPMXSE1070
Availability: Many In Stock
Product Type: Radio Control
$82.11
$82.11
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $82.11
FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

Spektrum

FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

$82.11
FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

Spektrum

FIRMA 70A Brushed Smart Water Proof ESC 12T 2S or 35T Crawler 3S Lipo

$82.11
Shipping: Hamilton Warehouse
Description
Description
x

Product Details

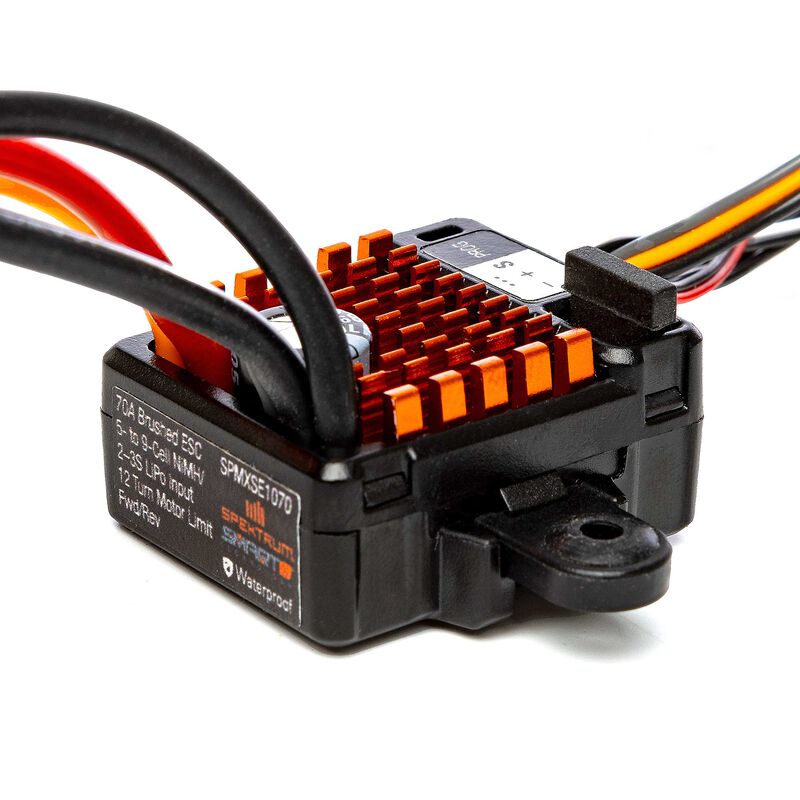

The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Key Features
  • SMART: INTEGRATED SMART TECHNOLOGY
  • WATERPROOF: Designed and built to operate in “wet condition” such as puddles, creeks, and snow*
  • PROGRAM VIA TRANSMITTER: Proprietary Text Gen Programming Allows for programming the esc from Transmitter
In The Box
  • (1) Spektrum Firma 70A Brushed Smart ESC
  • (2) Light Strings (red and white)
  • (1) Product Manual
Needed to Complete
  • Spektrum™ Surface Receiver
  • 540 – 550 size Brushed motor
  • 2S or 3S Lipo Battery with EC3 or IC3 Connector
  • Spektrum Transmitter

Features

  • Smart all-in-one telemetry
  • Smart Lite functionality
    • Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.
  • Integrated LED light power outputs for simple installation without the need of additional receiver ports
  • 70 Amp continuous power – ideal for 1/10 scale crawlers and scalers
  • 2S-3S LiPo Compatible
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Programming from Transmitter via Text Gen Telemetry
  • Waterproof ESC*
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Aluminum heat sink for high efficiency
  • Adjustable high-power BEC (6V or 7.4V, 4amp)
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Overview

The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!



Product Specifications

Connector Type 4mm Bullet, IC3
ESC Type Brushed
Product Length 1.41" (36 mm)
Turns Below 8.4V; Down to 12T / Below 12.6V; Down to 35T
Adjustable Timing No
Amperage 60A - 79A
Max Input Voltage 11.1V
Maximum Burst Current 200A
Maximum Continuous Current 70A
Motor Type Brushed
Application Surface
Auto Cutoff Yes
BEC Continous Current 4
Low-Voltage Cutoff Programmable Yes
Product Weight 1.76 oz (50 g)
Water-Resistant Yes
Forward Yes
Reverse Yes
Brakes Integrated with ESC
Programmable Yes
Programming Options Programming Box, Smartlink App, On Screen Text Gen
Product Application Crawling, Surface
Product Height 0.71" (18 mm)
Battery Input Lead IC3
Product Width 1.18" (30 mm)
Technology Smart
BEC Yes
BEC Voltage 6V / 7.4V User Selectable
Input Voltage 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd
Motor Limit 540 / 550 Size Brushed Motors
Motor Output Lead 4mm
