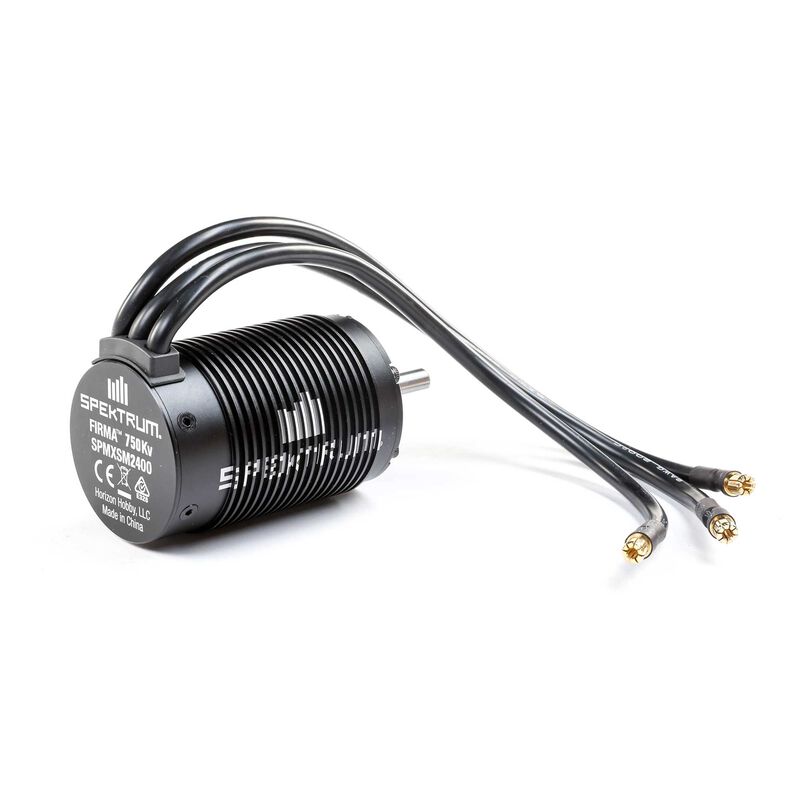

Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

4S LiPo Capable Low Cog 4-Pole 8-Magnet Rotor Design Alloy steel 8mm Output Shaft In The Box Firma 5687 - 750Kv 4-Pole Brushless Motor Needed to Complete 150A ESC Overview...
Vendor: Spektrum
SKU: SPMXSM4200
Availability: 1 In Stock
Product Type: Radio Control
$313.29
$368.58
$313.29
Please hurry! Only 1 left in stock
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $313.29
Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

Spektrum

Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

$313.29
Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

Spektrum

Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft

$313.29
Shipping: Hamilton Warehouse
Description
Description
x
  • 4S LiPo Capable
  • Low Cog 4-Pole 8-Magnet Rotor Design
  • Alloy steel 8mm Output Shaft
In The Box
  • Firma 5687 - 750Kv 4-Pole Brushless Motor
Needed to Complete
  • 150A ESC

Overview

The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

  • Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
  • High efficiency design
  • 4S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
Outer Diameter 2.2" (56 mm)
Input Voltage 12 25.2V
RPM/Volt (Kv) 750Kv
Maximum Continuous Current 80A
Motor Type Brushless - Sensorless
Motor Design Inrunner
Connector Type 6.5mm Bullet
Efficiency 87%
Motor Size 5687
Product Length 3.43" (87 mm)
Application 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup
Number of Poles 4
Output 3950W
Product Weight 2.08lbs (947g)
Shaft Diameter 0.314" (8 mm)
