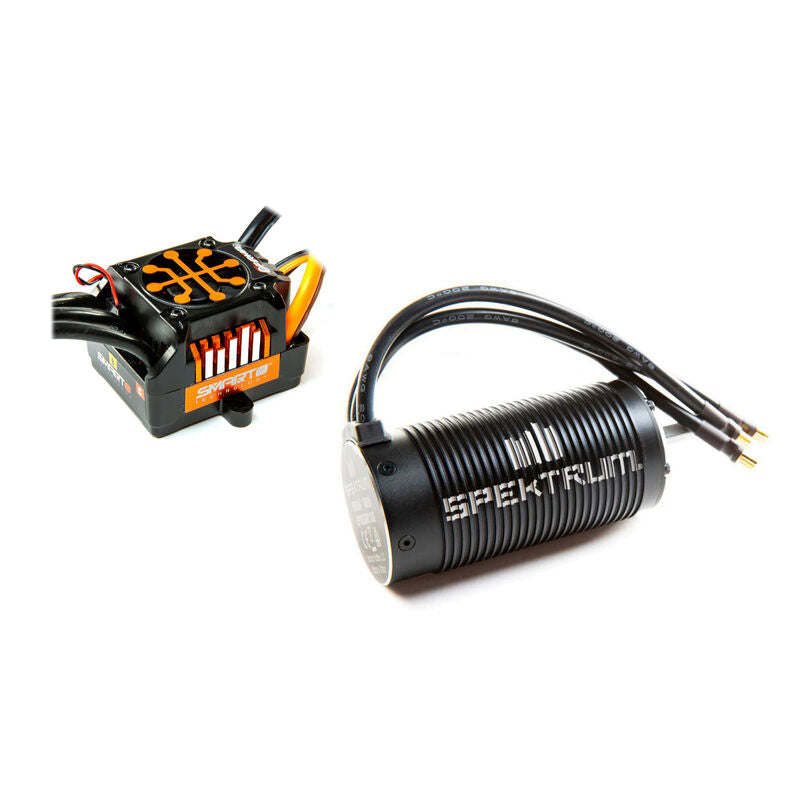

FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

Product Features Smart all-in-one telemetry Fast, powerful 32-bit ARM M4 processor Waterproof Multiple options for easy programming: Button programming Smart ESC Programming Box SmartLink USB Updating and Programmer application Multi-point...
Vendor: Spektrum
SKU: SPMXSEMC05
Availability: Out Of Stock
Product Type: Radio Control
$475.70
$475.70
Shipping: Hamilton Warehouse
Delivery Timeframes

Standard-Orders: All of our products are stocked locally in New Zealand and will be shipped on the same day or the next day after you place your order.

Pre-Orders: For all pre-orders, our target delivery timeframe is 2–3 weeks, provided the item is currently in stock at Horizon Hobby.

Subtotal: $475.70
FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

Spektrum

FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

$475.70
FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

Spektrum

FIRMA 150A BL 3-6S Smart ESC/2050Kv Sensorless Motor Combo for 1/8th Buggy and

$475.70
Shipping: Hamilton Warehouse
Description
Description
x

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Comes bundled with Spektrum Firma 2050Kv Brushless Motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2050Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Needed to Complete
  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum™ Firma™ 2050Kv Brushless Motor
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Video Overview



Video Overview



WATERPROOF

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



EC3™/EC5™ BACKWARDS COMPATIBLE

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.



ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See compatibility chart for more information.



SMART TECHNOLOGY BATTERY DATA

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.




FAST, POWERFUL M4 PROCESSOR

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.





Motor Output Lead 5.9" (150mm) 10AWG
Input Voltage 3S - 6LiPo
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 950A
Maximum Continuous Current 150A
Motor Connector 4mm Bullet
Forward Yes
Battery Input Lead IC5, EC5 compatible
BEC Yes
BEC Continous Current 5A
BEC Type Linear
BEC Voltage 6V
Brakes Yes
Battery Connector IC5
Auto Cutoff Yes
Reverse Yes
RPM/Volt (Kv) 2050Kv
Smart Technology Smart ESC
Product Height 1.5" (38.5mm), ESC
Product Length 2.3" (58mm), ESC
Product Weight 8.4oz (238g), ESC
Product Width 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs, ESC
Programmable Yes
Output 3000W
Overload Protection Yes
Motor Type Brushless
