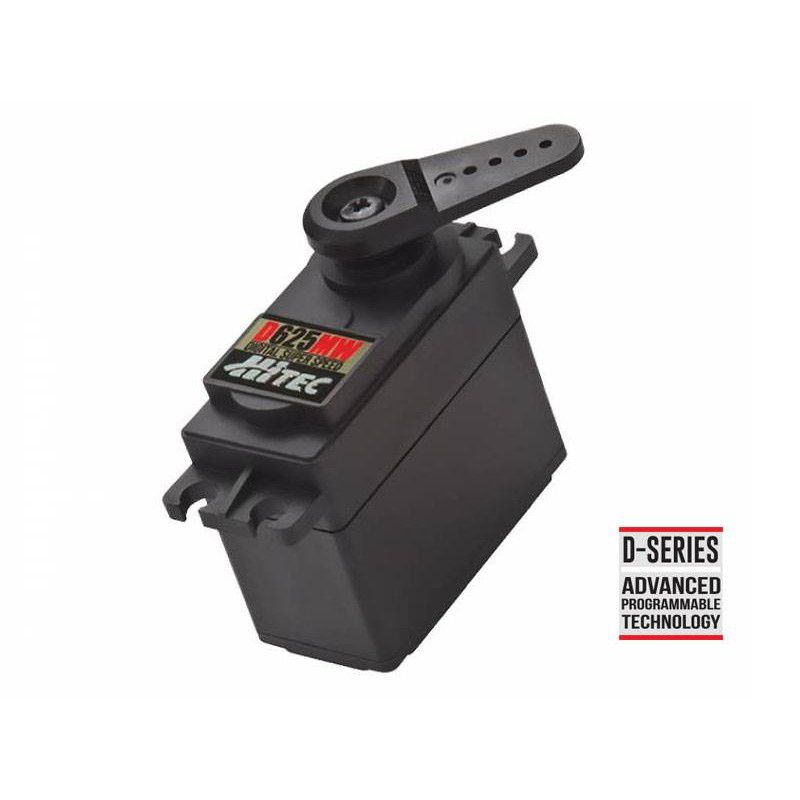

D625MW STD MG, Digital, WV, HR, H25T, PRG, 6.3kg/cm 0.20 4.8V, 8.80kg/cm 0.15

The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline



Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

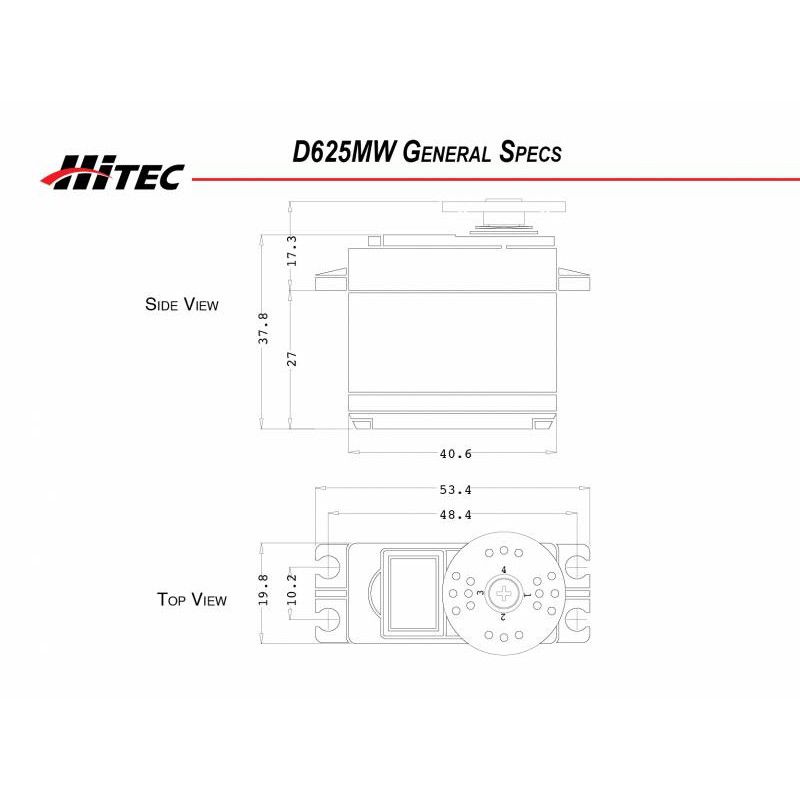

D625MW Servo Specifications
