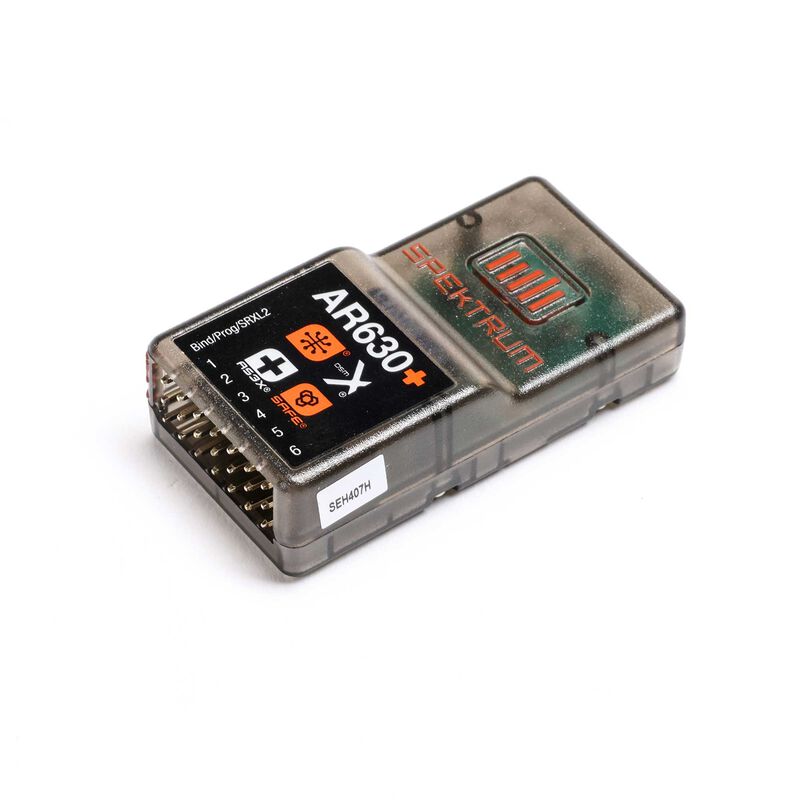

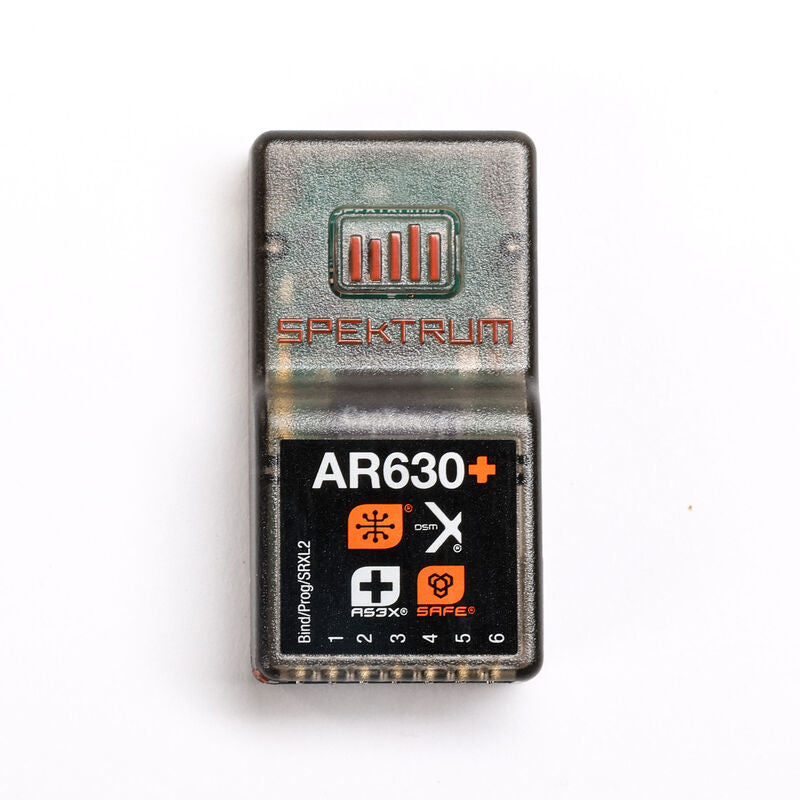

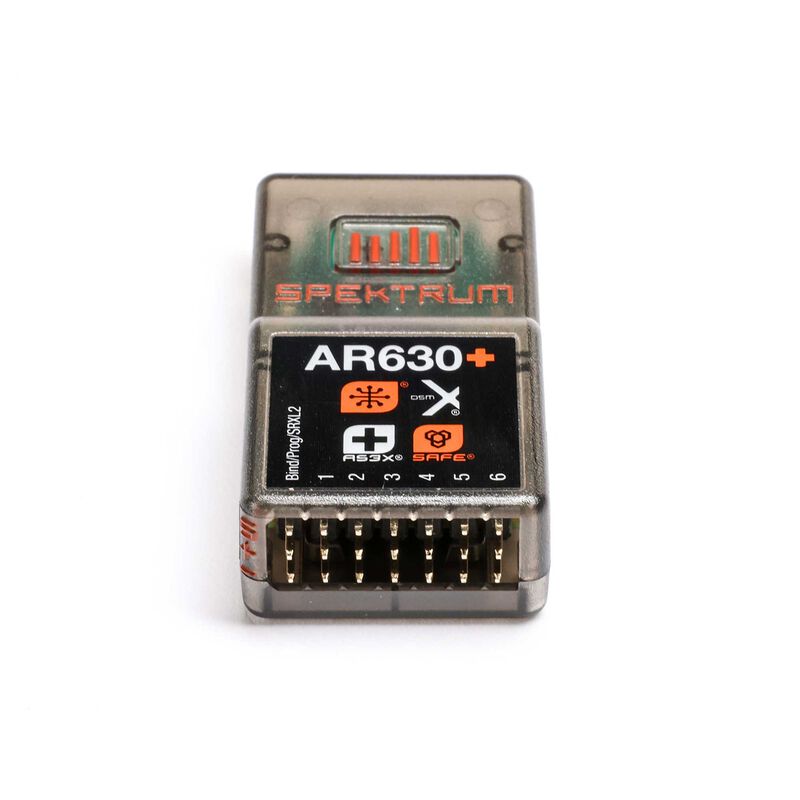

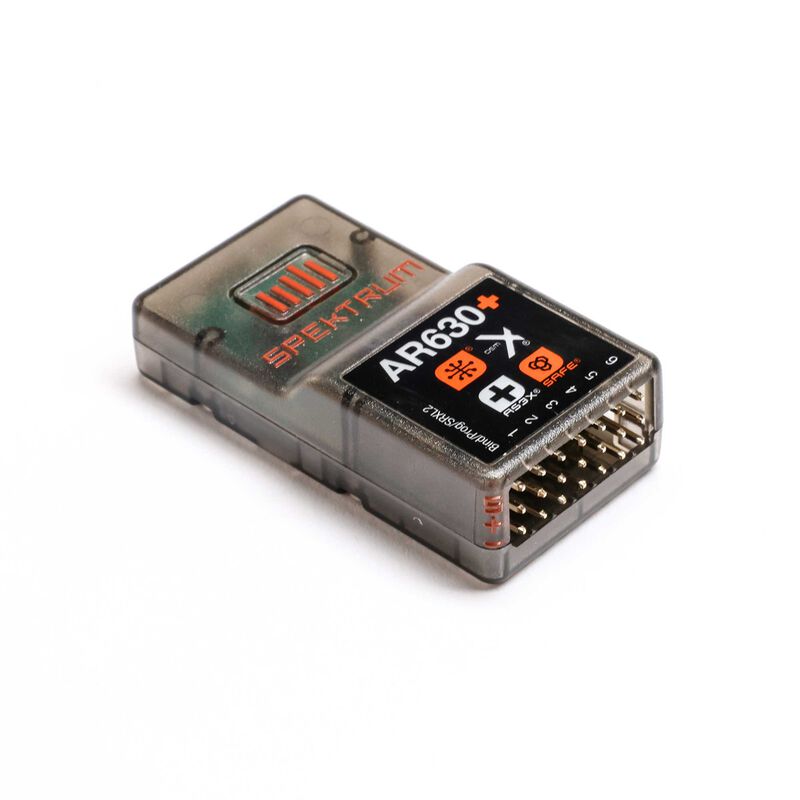

AR630+ 6 Channel AS3X+ & SAFE Receiver (Replaces SPMAR630)

NEXT GENERATION IN-FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that experts throughout the hobby have rigorously tested. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until your aircraft is locked in. We have been able to set up most aircraft in less than five minutes, including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gyro filtering
• Canard and Thrust Vectoring support

SMART TRANSMITTER MODEL FILES SUPPORT

Smart Transmitter Model Files is a new feature on the AR630+ receiver that makes transmitter programming the easiest it has ever been. It consists of a set of transmitter configuration parameters stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download the model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.

SAFE® TECHNOLOGY

SAFE® (Sensor Assisted Flight Envelope) Technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent the aircraft from getting into extreme attitudes.

ANTENNA-LESS

The AR630+ features an internal antenna design that offers superior full-range performance. Installation is easier than ever, and there's no longer a risk of failure due to long-term wire exposure or abuse.

SMART TELEMETRY

To enjoy the full benefits of Smart™ Technology, use the AR630+ receiver with a Smart ESC and a telemetry-capable Spektrum DSMX® transmitter. The AR630+ features fly-by telemetry and will send vital telemetry data such as current, voltage, temperature, and RPM directly to your transmitter. However, it is not compatible with Spektrum telemetry sensors.

FORWARD PROGRAMMING

You can configure the AR630+ receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Product Specifications
